Telebyte’s Ethernet-APL and 10BASE-T1L / SPoE Solutions are Multipurpose.

Test During
Product Development

  • Check specific functionality on prototypes by using interactive mode
  • Optimize product quality
  • Identify and resolve issues quickly
  • Debug specific conditions using a repeatable methodology
  • Verify initial hardware earlier in the testing process

Conformance & Interoperability
Testing (Power & Data)

  • Assess a product’s compliance to standards early on
    • IEEE 802.3-2022 (10BASE-T1L / SPoE)
    • Ethernet-APL (10BASE-T1L Trunk and Spur)
  • Fully Automated
  • High Throughput: All power and data tests on a port are typically run in hours (instead of weeks with other approaches)
  • Repeatable Results: Using a single universal test setup provides repeatable test results from lab to lab

Simulate Real-World Environments
in the Lab

  • Compare performance of devices from different vendors in a real-world field environment
    • Use over a wide variety of test scenarios
    • Find and solve issues before deployment
    • Inject noise (AWGN, Impulse Noise, Alien Crosstalk)
    • Inject cable faults (bad connector, shorts)
    • Test over a wide variety of cable types and lengths (vary DC Resistance and Attenuation)
  • Will it work on existing legacy cabling
    • Use IEEE 802.3-2022 and Ethernet-APL worst case cable limits vs of cables with plenty of margin
  • System level testing
    • Fully load the switch ports and use load devices from different vendors

Fully Integrated & Economic Approach to Testing

Explore automated testing solutions for your Ethernet-APL and 10BASE-T1L / SPoE devices. Industrial communication devices need to be robust, compliant, and stable to prevent failures in the field. This can be achieved, from the initial design to the product validation stage, with a comprehensive yet flexible testing solution that reproduces field conditions in the lab. Manual testing is costly, complicated, and time consuming. Telebyte’s economically priced, automated testing solutions are designed to remove these barriers and typically pay for themselves in less than two years.

Products & Services

ETHERNET-APL PRE-CERTIFICATION TESTING SERVICE
MULTIFUNCTION PROBE
CHANNEL EMULATION/INTEGRATED POWER MONITORING/SCCP PROTOCOL ANALYSIS

World’s First Standard-Based Cable Emulator for Testing SPE 10BASE-T1L and PoDL

SPE TEST AUTOMATION SOFTWARE

Automation of SPE
Standards-Based Testing

NOISE GENERATION SOFTWARE

ETHERNET-APL TESTING SOLUTIONS

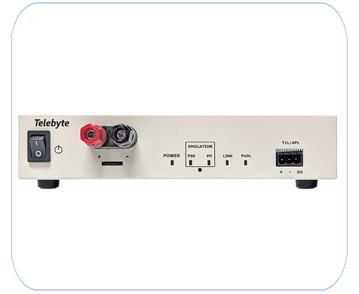

REFERENCE LINK PARTNER

Power Source (PSE) or Power Load (PD) Emulator

Telebyrte Model 600 Series Switches for SIngle Pair Ethenet (SPE) testing.  10BASE-T1L, PoDl, 802.3cg. Compliance, Safety, Interoperability, test automation.
SWITCHING PRODUCTS

Transparent Switching Matrix Modules for SPE Test Automation
