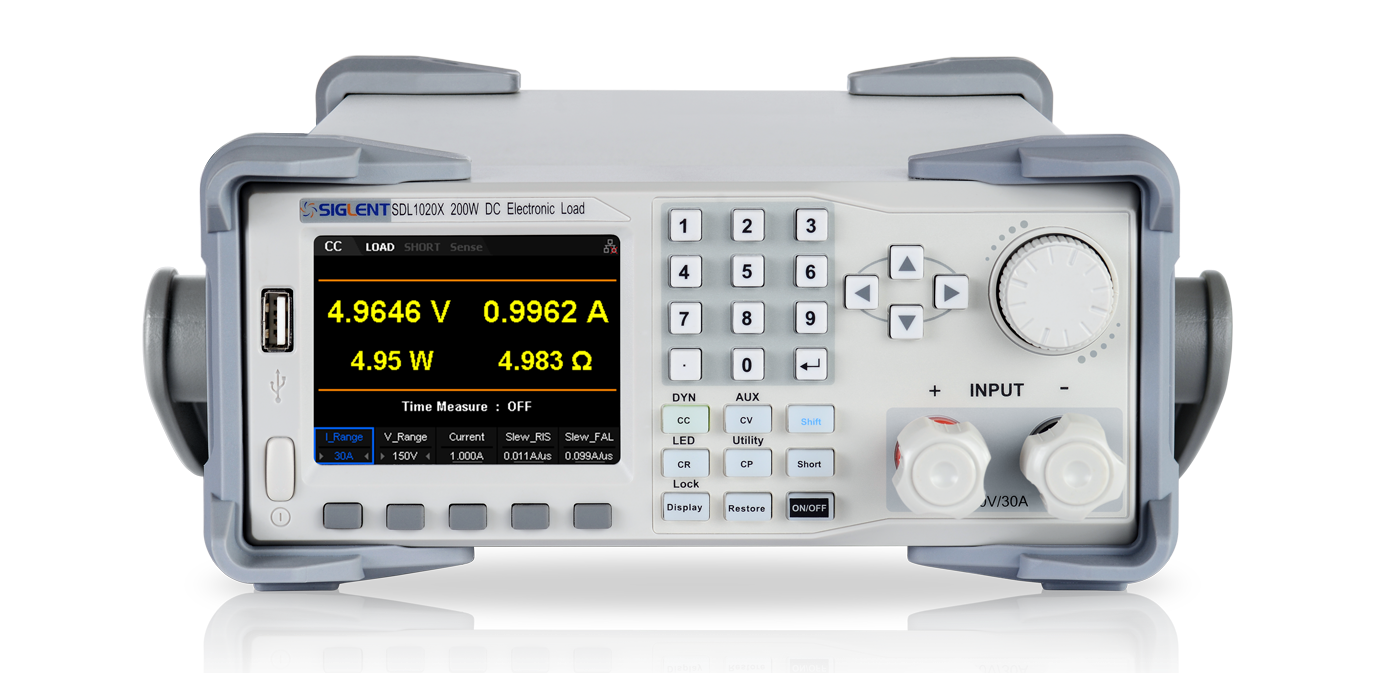

Siglent SDL1020X
Programmable DC Electronic Load

Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types.

SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W

4 static modes / Dynamic mode: CC/CV/CR/CP

CC Dynamic mode: Continuous, pulsed, toggled

CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz

Measuring speed of voltage and current: up to 500 kHz

Adjustable current rise time range: 0.001 A/us~2.5 A/us

Min. readback resolution: 0.1 mV, 0.1 mA

Short-circuit, Battery test, CR-LED mode, and factory test functions

4-wire SENSE compensation mode function

List function supports editing as many as 100 steps

Program function supports 50 groups of steps

OCP, OVP, OPP, OTP and LRV protection

External analog control

Voltage, Current monitoring via 0-10 V

3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously

Built-in RS232/USB/LAN communication interface, USBGPIB module (optional)

Waveform trend chart and ease-to-use file storage and call functions
