Automated Ethernet-APL Power & Data Conformance Testing
(Best In Class for PSE/Power Switch)

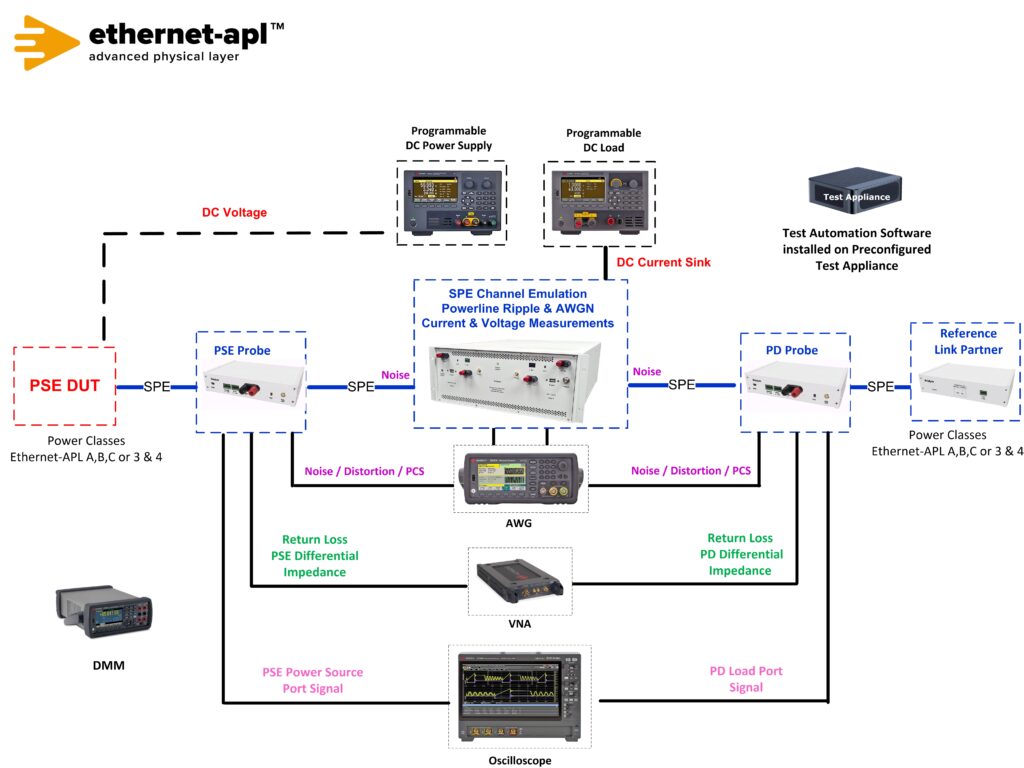

Telebyte’s Ethernet-APL Universal Test Setup supports PSE Source with one setup for Ethernet-APL Conformance and Interoperability Data and Power testing. The small footprint saves valuable laboratory test space while the fully automated approach saves time and money and provides repeatable test results. The solution is easy to use, allowing tests to be performed by technicians with minimal training. There is no need to plug/unplug different instruments and fixtures in the test setup. Additional features include automated software for controlling DUTs and all test equipment. The software generates Pass / Fail Reports for Ethernet-APL Conformance Power and Data tests. A customer’s PC with a serial and network connection is used to transfer data to the PC for post processing the captured Ethernet signal with Telebyte’s Test Automation Software. Customers may purchase all integrated test setup instruments from Telebyte. Please note this same setup can be used for testing PD Loads. An optional switch matrix is available for switching in of multiple DUTs in a test bed.

Required equipment:

Telebyte 4950 10BASE-T1L Channel Emulator
Telebyte SPE Test Automation Software
Telebyte 4950-P01 Probe
Telebyte 4925 Reference Link Partner
10BASE-T1L Reference Link Partner
Keysight E36232A Programmable Power Supply
Keysight EL33133A DC Electronic Load
Keysight 33612A Waveform Generator
Keysight EXR054A Infiniium EXR-Series Oscilloscope
Keysight P9370B Vector Network Analyzer
Keysight KT-34465A Truevolt Digital Multimeter
Download Application Note

Ethernet Conformance Data and Power Test List

Ethernet-APL Data Test Specification v1.5.6
Group 1: Transmitter Electrical Measurements
Test APL.146.1.1 – Transmitter Output Voltage (Test Mode 1)
Test APL.146.1.2 – Transmitter Output Droop  (Test Mode 2)
Test APL.146.1.3 – Transmitter Timing Jitter (Test Mode 1)
Test APL.146.1.4 – Transmitter Power Spectral Density (PSD) and Power Level (Test Mode 3)
Test APL.146.1.5 – Transmit Clock Frequency (Test Mode 1)
Test APL.146.1.6 – MDI Return Loss (Part A: Tx disabled: DUT in Slave, high Z state)
Test APL.146.1.6 – MDI Return Loss (Part B: Test Mode 3 VNA with narrowband IF of 100Hz)
Test APL.146.1.7 – Transmitter Distortion (Test Mode 2) with 1MHz Sinusoidal Disturber at 1.0Vpp and/or 2.4Vpp
Group 2: Receiver Electrical Measurements
Test APL.146.2.1 – Receiver Packet Error Rate Stress Test
     Noise includes
    AWGN @ -106dBm/Hz
    Power-line Ripple Noise components
         100mV at 1kHz and 10kHz, 10mV at 100kHz and 1MHz, and
         100mV at 10kHz falling 20dB per decade to 10mV at 100kHz swept
    Ethernet-APL Appendix F – 1.0Vpp Spur & 2.4Vpp Trunk Worst-Case Whole Communication Channel
    Traffic Testing – Link Quality SNR better than 20dB, DUT Passing BER < 10-9
Group 3: Transmit Packet Formation
Test APL.146.3.1 – Transmit Signaling
Group 4: Receive Error Handling
Test APL.146.4.1 – Automatic Polarity Detection and Correction
Test APL.146.4.2 – Handling of Received ESD_ERR4
Test APL.146.4.3 – Handling of Received CRC Errors
Section 98: Ethernet-APL Clause 98 Auto-Negotiation Validation
Group 1: Auto –Negotiation Basic Tests for Ethernet-APL
Test APL.98.1.1 – Advertisement and Auto-Negotiation Verification
 Part A: DUT advertises valid capabilities
 Part B: DUT links with compatible link partner
 Part C: DUT spur port when LP advertises but does not request increased transmit level
 Part D: DUT behavior with incompatible link partner (spur to trunk, trunk to spur)
 Part E: DUT behaves  properly with incompatible link partner (spur to trunk, trunk to spur)
 Part F: DUT behavior when link partner prefers master or slave port role (M/S is always 0).
 Part G: DUT behavior when link partner forces master or slave port role (M/S is always 1).
Test APL.98.1.2 – Management Restart of Auto-Negotiation
Test APL.98.1.3 – Link Status Fail
Test APL.98.1.4 – DME Voltage Envelope Test     Test APL.98.1.5 – Auto-Negotiated Link-Up Time
Test APL.98.1.5 – Auto-Negotiated Link-Up Time
Ethernet-APL Power Test Specification v1.4
TP: Trunk Power Source Ports – Segment ‘T’; Port ‘P
TP.1: Power Tests
TP.1.1 Power Class Currents    Minimum Supply Voltage 46
TP.1.1 Power Class Currents   Maximum Supply Voltage 50V
TP.1.2 Powering Class Voltages   Minimum Supply Voltage 46
TP.1.2 Powering Class Voltages   Maximum Supply Voltage 50V
TP.2 Electrical Characteristics
TP.2.1 Differential In-Band Ripple and Noise
TP.2.1 Differential In-Band Ripple and Noise Load draws 0 A
TP.2.2 Differential Out-Band Ripple and Noise   Maximum Supply Voltage 50V  Load draw IPS
TP.2.2 Differential Out-Band Ripple and Noise   Minimum Supply Voltage 46  Load draw IPS
TP.2.2 Differential Out-Band Ripple and Noise   Maximum Supply Voltage 50V  Load 0 A
TP.2.2 Differential Out-Band Ripple and Noise   Minimum Supply Voltage 46 Load 0 A
TP.2.3 Voltage Derivatives
TP.2.4 Over Current Capability
TP.2.5 Over Current Limiting
TP.3 General Port Requirements
TP.3.1 Terminal and Connectors
TP.3.2 Shielding Options*
TP.3.3 Short Circuit Behavior
SP: Spur Power Source Ports – Segment ‘S’; Port ‘P’
SP.1 Power Tests
SP.1.1 Powering Class Currents   Minimum Supply Voltage (A=9.6 C=11.61)
SP.1.1 Powering Class Currents  Maximum Supply Voltage V=15
SP.1.2 Powering Class Voltages Minimum Supply Voltage (A=9.6 C=11.61)
SP.1.2 Powering Class Voltages  Maximum Supply Voltage V=15
SP.2 Electrical Characteristics
SP.2.1 Differential In-Band Ripple and Noise   Maximum Supply Voltage V=15  Load draws IPSmin
SP.2.1 Differential In-Band Ripple and Noise   Minimum Supply Voltage (A=9.6 C=11.61)  Load draws IPSmin
SP.2.1 Differential In-Band Ripple and Noise   Maximum Supply Voltage V=15 Load draws 20mA
SP.2.1 Differential In-Band Ripple and Noise   Minimum Supply Voltage (A=9.6 C=11.61) Load draws 20mA
SP.2.2 Differential Out-Band Ripple and Noise Maximum Supply Voltage V=15  Load draws IPSmin
SP.2.2 Differential Out-Band Ripple and Noise Minimum Supply Voltage (A=9.6 C=11.61)  Load draws IPSmin
SP.2.2 Differential Out-Band Ripple and Noise Maximum Supply Voltage V=15  Load draws 20mA
SP.2.2 Differential Out-Band Ripple and Noise Minimum Supply Voltage (A=9.6 C=11.61)  Load draws 20mA
SP.2.3 Voltage Derivatives
SP.3 General Port Requirements
SP.3.1 Terminal and Connectors
SP.3.2 Shielding Options*
SP.3.3 Short Circuit Behavior

* External DMM required (KT-34465A direct measurement)
